steering arm differences between powered/non powered rack


Post new topic   Reply to topic    Alfa Pages Forum Index -> Boxer Workshop
View previous topic :: View next topic
Author Message
BigAl
P4


Joined: 06 May 2003
Posts: 3074
Location: U.K Surrey

PostPosted: Wed Oct 16, 2013 1:51 pm    Post subject: steering arm differences between powered/non powered rack Reply with quote

Hi girls and guys
I have a 16v 33 fitted with a NON power assisted steering rack.
I would like to fit the power assisted steering arms, as they have adjusters on the ends to make tracking adjustment more accurate and easier.

Could someone tell me the dimensions of the holes in both a NON power assisted steering rack arm and an assisted one?

Assuming the assisted one is smaller than a NON assisted one I can make up a sleeve.
I just need to know if a sleeve is enough or if they are wider, top hat sleeves will need to be made.

Thanks
Alan.
_________________
1993 ser 3 silver 16v
Back to top
View user's profile Send private message
Bobkelso
Alfa Sprint


Joined: 09 Aug 2011
Posts: 200
Location: Milan - Italy

PostPosted: Wed Oct 16, 2013 3:11 pm    Post subject: Reply with quote

Hi BigAl,
you can have adjusters on the ends not depending
if you have or not power assisted rack,
adjusters are an upgrade done in '92 or '93 on all 33
(and yes probably in 92-93 about 90% of 33 where power
assisted but non all, I just see here one of '93 without it)

I think they can be changed without need to change
or modify the other parts (i.e. same holes) Very Happy
Am I wrong?
Back to top
View user's profile Send private message
BigAl
P4


Joined: 06 May 2003
Posts: 3074
Location: U.K Surrey

PostPosted: Wed Oct 16, 2013 4:51 pm    Post subject: Reply with quote

the adjusrers have a left handed thread and will not fit Sad
_________________
1993 ser 3 silver 16v
Back to top
View user's profile Send private message
LoneWolf33
Alfa Arna


Joined: 21 Sep 2013
Posts: 22
Location: Budapest, Hungary

PostPosted: Wed Oct 16, 2013 5:02 pm    Post subject: Reply with quote

Hi,

Quote:
you can have adjusters on the ends not depending
if you have or not power assisted rack


Fully agree with that, the difference is the length setting of the
steering arms. I don't know how to post a diagram here
as I don't have photobucket (or some similar) account.
(Through AO maybe...? Smile )
Back to top
View user's profile Send private message
gritsop
Green Cloverleaf


Joined: 23 Apr 2003
Posts: 771
Location: Ekali, Athens - Greece

PostPosted: Wed Oct 16, 2013 8:09 pm    Post subject: Reply with quote

Hi

My 33 which is a 1991 PAS model was fitted with the fixed length steering bars. A lot of years ago I had found a later production 33 which was fitted with the adjustable steering bars which I removed and installed them on my 33.

It is a bolt on upgrade and it is not dependent on PAS or not.

Regards
_________________
Thanassis Gritsopoulos
1991 Alfa 33 1.4 IE
2001 Alfa 147 1.6 Distinctive

http://www.alfa-restoration.co.uk
Parts Shop: www.alfa-restoration.co.uk/shop
Back to top
View user's profile Send private message Send e-mail
RFlower
Gold Cloverleaf


Joined: 17 Feb 2004
Posts: 522
Location: S of France

PostPosted: Thu Oct 17, 2013 7:08 pm    Post subject: Reply with quote

Here is a diagram from the manual available from links on this site



Now I know about it I'll take those off the broken car to fit on the Sprint Very Happy
_________________
Dick Flower, Nr. Carcassonne. '94 Trofeo 1.4 ie (F), '93 Imola 1.3/1.4 ie (now for parts) (F), '91 1.7 ie (GB)(spare car), '86 Sprint 1.5 QV (F). '87 VW Syncro camper (F), '96 Audi Avant 1.8T (F)
Back to top
View user's profile Send private message
LoneWolf33
Alfa Arna


Joined: 21 Sep 2013
Posts: 22
Location: Budapest, Hungary

PostPosted: Fri Oct 18, 2013 6:40 am    Post subject: Reply with quote

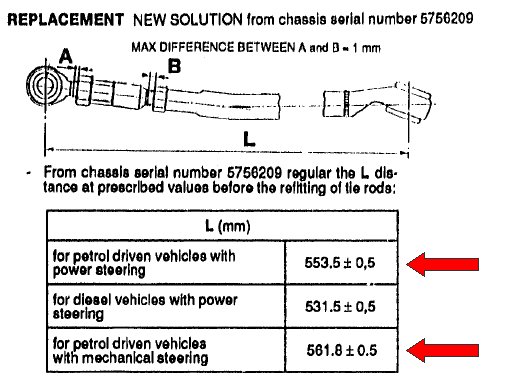

I've just realized that I already have a google+ account,
so here's the diagram with the arm length settings:
Back to top
View user's profile Send private message
Bobkelso
Alfa Sprint


Joined: 09 Aug 2011
Posts: 200
Location: Milan - Italy

PostPosted: Fri Oct 18, 2013 3:58 pm    Post subject: Reply with quote

Uhm..
I didn't suspect arms where 8mm different
in length depending on PAS or not..
..it seams that the 2 bolts on steering rack
where steering arms are fastened are more
spaced on PAS rack..nice to know it Wink

I check Eper spares catalog, arms+adjusters+nuts
have different codes depending on PAS or not,
not sure if arms are effectively built with different length
or if they are the same and the 8mm difference is achieved
only with a different regulation of the adjusters and
different thickness of the two nuts on the adjuster sides Question

>> Arms before adjusters upgrade codes:

60501536 - no PAS - DX and SX ( spare code is for arm )

60538758 - PAS - DX ( spare code is for arm )
60538759 - PAS - SX ( spare code is for arm )

>> Arms after adjuster upgrade codes:

60572860 - no PAS - DX and SX - ( spare code is for arm+adjuster+nuts)

60572858 - PAS - DX and SX ( spare code is for arm+ adjuster+nuts)

>> Arms after upgrade as separate spare are not available

>> Adjuster as separate spare have 1 only code,
the same for Dx-Sx and with PAS or not

>> The nut for the inner side of the adjusters has different codes
depending of PAS or not, and in the figure it seams thicker the one for not PAS.

May be different length is achieved only by different nut and regulation ??
Back to top
View user's profile Send private message
BigAl
P4


Joined: 06 May 2003
Posts: 3074
Location: U.K Surrey

PostPosted: Sun Jun 01, 2014 9:26 pm    Post subject: Reply with quote

Did anyone take any measurements of the holes in the steering arms at the steering rack end
_________________
1993 ser 3 silver 16v
Back to top
View user's profile Send private message
eagle3
Alfa 33


Joined: 11 Nov 2007
Posts: 405
Location: France

PostPosted: Tue Jun 03, 2014 7:45 am    Post subject: Reply with quote

All but the boggo 1.3(1991-1993) carb entry level serie 3 had PAS I believe.

As far as I know from 1993 on it was standard on all models.
_________________
Alfa33 QO 1984
Alfa33 1.3i.e. 1994
Back to top
View user's profile Send private message
BigAl
P4


Joined: 06 May 2003
Posts: 3074
Location: U.K Surrey

PostPosted: Wed Jul 02, 2014 9:21 am    Post subject: Reply with quote

for anyone that needs sleeves, aka Joelamint Smile
adjustable ps rack arms have an m12 bolt with a 22mm head bolt
non adjustable non ps rack arms have an m10 bolt hole
sleeve 10.6mm id and 12.6mm od and 26mm long
_________________
1993 ser 3 silver 16v
Back to top
View user's profile Send private message
BigAl
P4


Joined: 06 May 2003
Posts: 3074
Location: U.K Surrey

PostPosted: Sun Jul 20, 2014 11:02 pm    Post subject: Reply with quote

decided to go with 10mm id as 10.6 was to large


_________________
1993 ser 3 silver 16v
Back to top
View user's profile Send private message
BigAl
P4


Joined: 06 May 2003
Posts: 3074
Location: U.K Surrey

PostPosted: Thu Sep 06, 2018 8:40 am    Post subject: Reply with quote

Joelamint
I had 2 sets made, one for you, if you are not interested let me know as edward wants some.

Thanks
_________________
1993 ser 3 silver 16v
Back to top
View user's profile Send private message
